ARES-1 Street Basher Build

Limitless V2 roller converted to a Infraction

General RC Information

Specs:

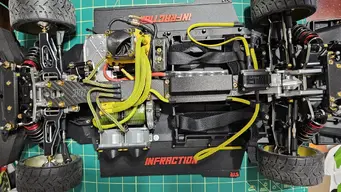

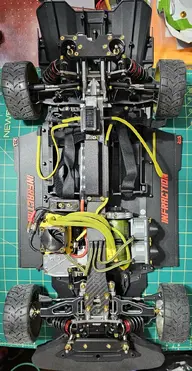

Chassis:

Arrma Limitless V2 Chassis ARA320659.

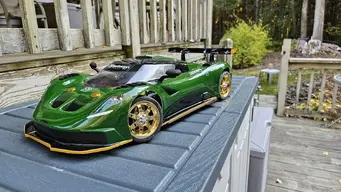

Body:
BittyDesign ARES-1 1/7 scale 1.5mm lexan body.
Body Post Mod: https://www.thingiverse.com/thing:6524036

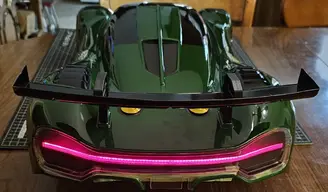

Illumination:
Front / Rear LED's and Mirrors designs by RC Tuning.

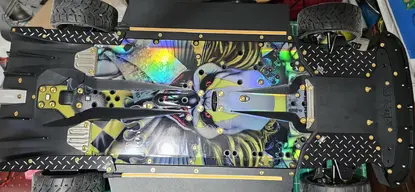

Custom Under-Glow lighting.

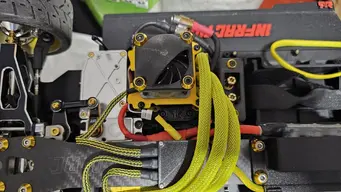

Power Plant:
Castle Creations Mamba Monster 8s ESC paired with Castle Creations 1717 1650kv sensored Motor.
ScorchedRC Roto-lok Motormount.
Gearing:
Spur = Saga 46T Mod 1.0, Pinon = 23T Mod 1.0

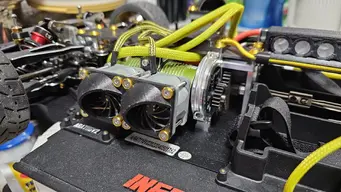

Cooling:
HyperFlow Fans Dual 40mm x 40mm x 28mm Aluminum body 4s motor cooling fans.
HyperFlow Fans 40mm x 40mm x 28mm Aluminum body 4s ESC cooling fan.
PowerTrain:
ScorchedRC Spool Set.
ScorchedRC Titanium Centre Drive Shaft Pair.
ScorchedRC Diff Housing / Bulkhead.
Vitavon CNC 7075 Aluminum Diff Housing 31mm
Differential Oil front & rear = 200,000
RamJam Arrma Limitless v2 5mm Diff Input Cup Set 4140 Tool Steel
RamJam Arrma Limitless v2 Diff Outdrive Cup Set 4140 Tool Steel
ScorchedRC Rear Hub Carrier Pair.
M2C 310455 ARRMA On Road 6s Front CVD Outdrive Driveshafts.
M2C 310456 ARRMA 6S On Road Rear Outdrive Dogbones.
M2C 3507 Universal 6 Lug Hex Adapters
Battery:
2x CNHL 4s 8000MAH 120C Lipos w/QS8 connectors.
ESC Connector Mod: https://www.thingiverse.com/thing:6347419
Suspension:
Perfect Pass V2 front upper/lower and rear lower arms.
Perfect Pass front and rear springs.
Arrma front/rear shock bodies.
Shock oil = 2k front and rear.
ScorchedRC front and rear 5mm 3k Carbon Fibre shock towers.
Vitavon Heavy Duty Steel Hinge Pins
GPM Arrma 6S Carbon Steel Front/Rear Shock Bracket
Steering:
GPM ARRMA 6S 7075 Aluminum Steering Assembly
ScorchedRC Aluminium 7075 T6 upgrade Steering knuckles.
ScorchedRC Titanium PVD coated Pillow Balls.
ScorchedRC Diff Housing / Bulkhead.
ScorchedRC Carbon Fibre Centre Torsion Brace.
Weight:
15.4lbs/6.98kg
Radio:
FlySky Nobel NB4 Plus paired with a FlySky INr4 GYB 4Ch receiver.
RC Type
Car
RC Brand
Arrma
RC Model
Limitless V2
RC Scale
1/7 Scale

Technical Specifications

Power Source
Electric
Battery Type
LiPo
Motor Type
Brushless
Drive System
4WD (Four-Wheel Drive)

Additional Information

Budget
Over $1000
