Bad Wolf 8S Big Buggy

My Journey into Arrma 6S parts bin building. Goal for Bad Wolf was to Speed Run Over Grass Fields. Sports-fields, park grass and light rough bashing. Speed and Power! ~ Jeremy Clarkson

General RC Information

The start of my Journey after getting back into this hobby after a few sub-lifetimes it seems. I watched lots of YouTube video, read read read and after finding build logs on this site and some on YouTube it was clear this is by far the best way to learn outside of first had experience. I wanted to document my journey. I love to Learn and Teach when I can and Share and Show Process and Discoveries.

This is the 1st of (2) 6S-8S cars I've documented in this Build Log:
6S-8S XLWB & LWB Big Buggies made from Typhon, Kraton, Talion and Mojave Bits 'n Pieces, formally known as An Idiots Guide to a Truggy 6S Build and some Resulting Carnage


Current (July 2024)

BAD WOLF BIG BUGGY 8S, Castle Powered.
Arrma Typhon 6S Body Shell, Velcro with Mojave Side Guards.
Arrma Kraton 6s EXB Wing Spoiler, 224 mm
Arrma XLWB Chassis CNC 7075-T6, Arrma/RPM Kraton 6S EXB Bumpers and Skids.
Arrma Kraton Arms and Hubs.
Arrma Typhon 6S Shock Towers.
Arrma Kraton Shock Bodies: F-1000cst 1x2x8 with 85mm 6.2lb Springs / R-1000cst 1x4x8 with 95mm 5.5lb Springs.
Arrma Kraton 6S EXB - Steering Rack with Hot Racing 6S Servo Saver Tube w/Clamping Nut Set.
ANNIMOS Digital Servo @ 7.4V (35 kg).
Hot Racing Aluminum Steering Hub Blocks.
Scorched Parts Titanium Drive Shafts.
FastEddy Sealed and HR Bearings.

Castle Mamba MMX8S ESC, ARCTIC S4028-15K - 40x40x28 mm Fan, 15000 RPM, PWM Regulated, 8-12v (for ESC).
Castle 1717-1650Kv Sensored Motor, DKKY Dual Cooling Fans, 21000 RPM (8-12v).
Arrma 46T Spur Gear.
TEKNO 26T M5 Pinion Gear.
Arrma 4.3 ratio Spiral Cut 10t, 43t diffs (F-200cst / R-500cst)
Arrma 6S OD Center (1M)
Arrma dBoots BackFlip MT Tires 3.8, 172 X 97 mm, .5 Offset 17mm Hex, 280g/each.

HOBBYMATE Flysky FS GT5 RC Transmitter 2.4Ghz
HOBBYMATE Flysky FS BS6 Gyro Receiver, 2.4Ghz
SKYRC GNSS GPS

Gear Speed App Tells me my Potential is;
141 mph @54.1k rpms (4.1V/cell)
131 mph @50.2k rpms (3.8V/cell)

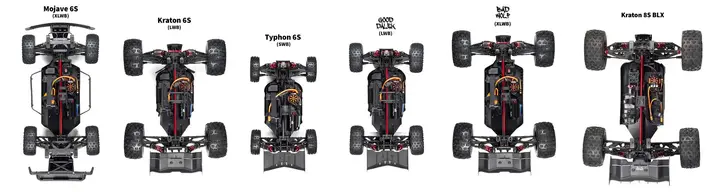

Arrma 6S-8S-BW-GD copy.jpg

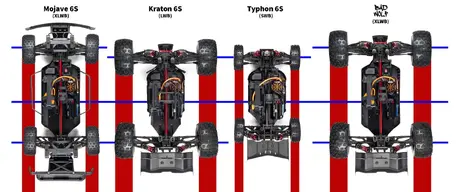

Arrma 6S-8S-BW-GD-Buggy.jpg












IMG_7834 copy.JPG



Danger Not A Toy 550x.png
RC Type
Buggy
RC Brand
Arrma
RC Model
6S Parts Bin
RC Scale
1/6 Scale

Technical Specifications

Power Source
Electric
Battery Type
LiPo
Motor Type
Brushless
Drive System
4WD (Four-Wheel Drive)
Top Speed
100-119 mph

Additional Information

Budget
Over $1000
Challenges Faced
Flipping, Tumbling, Cartwheeling, Smashing into Fences and Polls, Trees - You know the usual general malaise that only the genius possess and the insane lament.
Build Thread
https://www.arrmaforum.com/threads/6s-8s-xlwb-lwb-big-buggies-made-from-typhon-kraton-talion-and-mojave-bits-n-pieces.53029/
