Custom 1/10 GROM

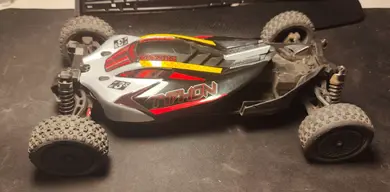

This is a Typhon GROM 223 BLX which I've customized the chassis to lengthen the wheelbase to 257mm, allowing the fitment of standard 1/10 car bodies. My goal is reliable street bashing and hooning with a realistic scale look.

General RC Information



Check the build thread for the most details I've shared. I like to include pics and videos as much as possible and I try to share details that I think are interesting or might help others out in the future.

I am new to RC in general, and haven't done anything quite like this before but I am pleased with my results so far. This is a work in progress, but is currently fully functional.

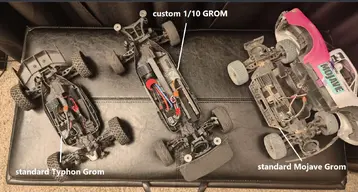

I started with a Typhon GROM BLX due to the strong stock parts, overall width (189mm), and cost. The Mojave GROM BLX would work essentially just the same (some slightly different dimensions, primarily with the custom driveshaft).

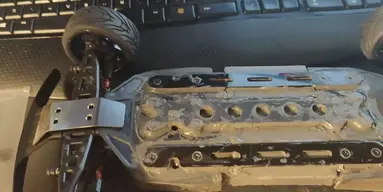

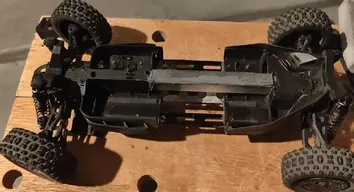

To summarize briefly - I chopped the chassis in half, extended it to 257mm wheelbase, and fitted up some magnetic mounts so it can receive standard 1/10 touring/drift style car bodies. I could install Granite GROM arms to go to 200mm width if needed for a car body too!
I really think Arrma needs to make a 1/10th street basher like this!

Here's a link to the youtube playlist with the latest videos I've made showing the build. Most of it is showing the vehicle in action. I have made some videos during the build process and will try to make a "full build" video sometime soon.
https://youtube.com/playlist?list=PLU-UPNNkZaiWQSGfNEEaSy40G5e8VfSv3&si=4xIP9Gm8i_MPyexz
RC Type
Car
RC Brand
Arrma
RC Model
Typhon GROM 223 BLX
RC Scale
1/10 Scale

Technical Specifications

Power Source
Electric
Battery Type
LiPo
Motor Type
Brushless
Drive System
4WD (Four-Wheel Drive)
Top Speed
40-59 mph

Additional Information

Budget
$400-599
Challenges Faced
This is all new to me, so most steps were a challenge! The biggest difficulty was the driveshaft solution (ended up using a 5/32 Eklind hex tool which I cut to length).
Build Thread
https://www.arrmaforum.com/threads/custom-1-10th-grom-build.76949/
