Good Dalek 6S Field and Street Buggy

Second Arrma 6S parts bin building. Goal for Good Dalek was to provide 2 rolls. First as a type of short course buggy for ripping cut-grass fields, dirt and gravel. And Secondly to adapt to Street tires for asphalt driving and bashing around.

General RC Information

After building the Big Buggy Bad Wolf I used much of the left over parts from a Kraton and Typhon and other 6S parts. I built a Stretched and Widened Typhon with Talion towers and re-sprung typhon shock bodies. Bit short course, but a little lower and shorter than a Mojave. It's a Super 6S Buggy for ripping cut-grass fields, dirt and gravel that also handles and behaves well with street tires for asphalt driving, bashing and speed running short blocks. Mixed conditions.

I opted for narrow typhon a-arms with hub extensions over longer Mojave arms so I can easily remove them for a better street-car profile with Hoons or similar tires. The hub extensions give it a wider stance with short course tires which I feel is better and faster speed running sports fields.

This is the 2nd of (2) 6S-8S cars I've documented in this Build Log:
6S-8S XLWB & LWB Big Buggies made from Typhon, Kraton, Talion and Mojave Bits 'n Pieces, formally known as An Idiots Guide to a Truggy 6S Build and some Resulting Carnage


Current (July 2024)

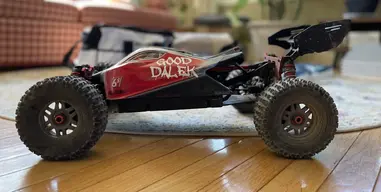

Good Dalek 6S Short Course and Street Buggy, Castle Powered.
Arrma Typhon TLR Body Shell, Velcro with Mojave Side Guards.
Arrma Typhon 6S BLX Rear Wing, 175mm.
Arrma LWB Chassis CNC 7075-T6, Arrma/RPM Kraton 6S Bumpers and Skids.
Arrma Typhon Arms and Hubs with +13mm extensions.
Arrma EXB Talion Shock Towers (Red).
Arrma Typhon Shock Bodies: F-1000cst 1x2x8 with 70mm 7.7lb Springs / R-800cst 1x2x8 with 85mm 6.2lb Springs.
Arrma Kraton 6S EXB - Steering Rack with Heavy Spring, Spektrum S652 Servo (19kg).
Scorched Parts Steering Knuckle Front Hub Blocks.
Scorched Parts Titanium Drive Shafts.
FastEddy Sealed and Scorched Bearings.

Castle Mamba MMX8S ESC, NHX 40x10 Cooling Fan (8.5v).
Castle 1515-2200Kv v2 Sensored Motor. DKKY Dual Cooling Fans, 21000 RPM (8-12v).
Arrma 50T Spur Gear (also an Armma 46T).
Arrma 23T Pinion Gear. (+all other size alternatives)
Arrma 6S Differentials 3.3 ratio Straight Cut 13t, 43t diffs.
Arrma 6S LSD EXB Center diff (500cst with all plates).

HOBBYMATE Flysky FS GT5 RC Transmitter 2.4Ghz.
HOBBYMATE Flysky FS BS6 Gyro Receiver, 2.4Ghz.
SKYRC GNSS GPS.

Arrma dBoots Fortress MT Short Course Tires, 139 X 42mm, .5 Offset 17mm Hex, 230g/each.
methodRC TERRAFORM All Terrain Belted Tires 139 x 58mm, 212g/each.

Gear Speed App Tells me my Potential is;
50/23: 123 mph @54.2k rpms (4.1V/cell)
50/23: 114 mph @50.2k rpms (3.8V/cell)
46/23: 133 mph @54.2k rpms (4.1V/cell)
46/23: 124 mph @50.2k rpms (3.8V/cell)
* ive broken 100 on pavement with larger Talion tires on Stock Firms electronics. VERY HOT 🔥 ESC and Motor, Exactly why it was replaced with the Castle mmx8s/1515 before it Firma-up in flames like the other one did. :rolleyes:




IMG_7432 2.JPG


IMG_3814 copy.jpg




IMG_7832 copy.JPG

IMG_7834 copy.JPG

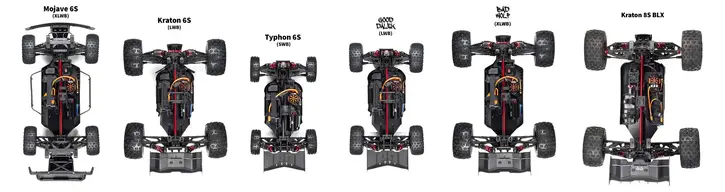

Arrma 6S-8S-BW-GD.jpg



Danger Not A Toy.png
RC Type
Buggy
RC Brand
Arrma
RC Model
Arrma 6S parts bin
RC Scale
1/7 Scale

Technical Specifications

Power Source
Electric
Battery Type
LiPo
Motor Type
Brushless
Drive System
4WD (Four-Wheel Drive)
Top Speed
100-119 mph

Additional Information

Budget
Over $1000
Challenges Faced
Flipping, Tumbling, Cartwheeling, Smashing into Fences and Polls, Trees - You know the usual general malaise that only the genius possess and the insane lament.
