Kraton 6s 4990 Enforcer- Dual Rear Chassis Braces

Kraton 6s 4990 Enforcer- Dual Rear Chassis Braces

General RC Information

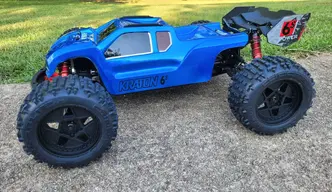

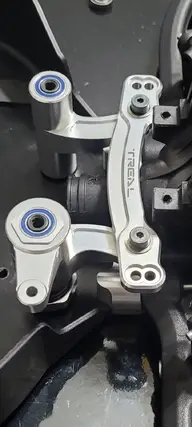

V3 Arrma Kraton 6s. Hobby Wing Max6 G2 ESC 4990SD motor. Dual aluminum offset rear chassis braces. One Kraton, one Notorious. Front aluminum chassis brace. 7075 top plate. Powerhobby 50kg servo. JBI solid servo mount. Treal 7075 steering system modified for quad flanged bearings on the ackerman & 12.9, 4mm socket head shoulder screws thru the ackerman bar. Titanium pillow balls. RPM arms. Avid titanium domed droop screws. Fireteam hexes. Custom 7075 T651, 5.2mm thick front shock tower I CNC machined & 4mm standoffs. Treal triple bearing front & rear hubs. All 5 aluminum hinge pin holders. 60/500/30 diffs. Proline Enforcer body. LP Backflips.
RC Type
Truck
RC Brand
Arrma
RC Model
Kraton
RC Scale
1/8 Scale

Technical Specifications

Power Source
Electric
Battery Type
LiPo
Motor Type
Brushless
Drive System
4WD (Four-Wheel Drive)

Additional Information

Challenges Faced
A bunch. Biggest being the quad flanged bearings in the 4mm thick ackerman plate.
