Kratonic Boom

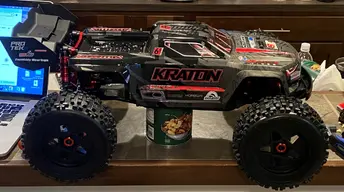

A custom build on a Kraton EXB roller chassis. Building to learn, and enjoying the bash.

General RC Information

Kraton EXB 6S (v2) Roller Chassis
-Hobbywing Max 6 ESC
-4990 G2 motor @ 1650kV (running 15T pinion for testing, going to 18T soon)
-Eco WP250T servo
-FlySky INR4-GYB receiver
-Diffs: Front 60K (open) / Mid 200K (limited slip plates) / Back 30K (open)
-dBoots Backflip 6S Tires
-Fast Eddy bearings (mostly)
-Budget custom maintenance stand :)
RC Type
Truck
RC Brand
Arrma
RC Model
Kraton EXB v2
RC Scale
1/8 Scale

Technical Specifications

Power Source
Electric
Battery Type
LiPo
Motor Type
Brushless
Drive System
4WD (Four-Wheel Drive)
Top Speed
60-79 mph

Additional Information

Budget
Over $1000
Challenges Faced
-Jammed motor mounting plate in mount through improper use of power tools, requires replacement parts
-Steering servo too tall for existing mount (using spacers)
-Rear wing mount and roll cage top broke during initial test run (running "naked"; my bad...)
-Locating a suitably-sized motor heat sink and fan. Have a Kraton 8S heat sink on order to try.
