Arrma Limitless V2 Lightning roller build.

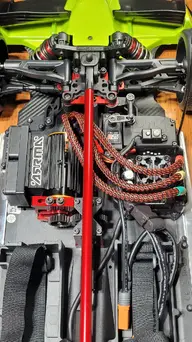

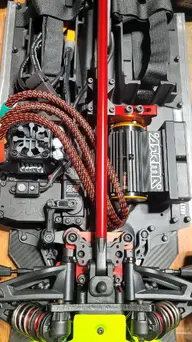

TP4050 1950KV motor.
Dual 40mm motor fans- custom 3d printed adapter mount I designed in Fusion360.

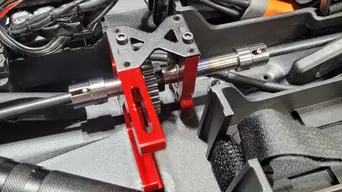

RamJam titanium spool & 39t Perfect Pass gear.
160a Spektrum Firma ESC.
Spektrum SR6110AT receiver.
M2C +3mm rear axle driveshaft dogbones.
Hobao 6mm center driveshafts.
Tekno input drive cups- bulkheads.
100k front diff fluid & 80k rear.
Power HD 25kg digital servo.
Ruddog 7075 servo arm.
Motor & gearing for 105mph on 6s

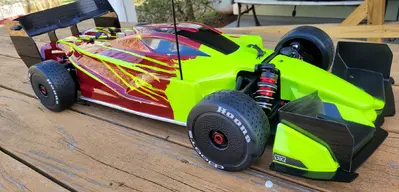

Body painted using dish soap- drizzle & drain technique. Red metal-flake & fluorescent yellow.
TP4050 1950KV motor.
Dual 40mm motor fans- custom 3d printed adapter mount I designed in Fusion360.
RamJam titanium spool & 39t Perfect Pass gear.
160a Spektrum Firma ESC.
Spektrum SR6110AT receiver.
M2C +3mm rear axle driveshaft dogbones.
Hobao 6mm center driveshafts.
Tekno input drive cups- bulkheads.
100k front diff fluid & 80k rear.
Power HD 25kg digital servo.
Ruddog 7075 servo arm.
Motor & gearing for 105mph on 6s
Body painted using dish soap- drizzle & drain technique. Red metal-flake & fluorescent yellow.
- RC Type
- Car
- RC Brand
- Arrma
- RC Model
- Limitless V2
- RC Scale
- 1/7 Scale
Technical Specifications
- Power Source
- Electric
- Battery Type
- LiPo
- Motor Type
- Brushless
- Drive System
- 4WD (Four-Wheel Drive)
- Top Speed
- 100-119 mph
Additional Information
- Challenges Faced
- Setting up the spool. Takes a few times of assembly & disassembly to get the stack correct.
