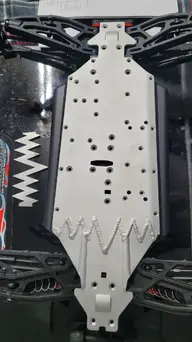

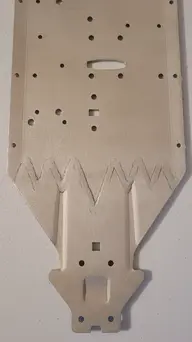

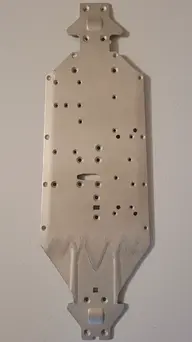

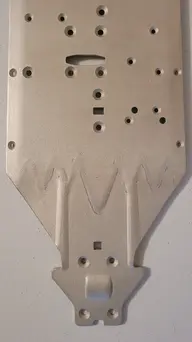

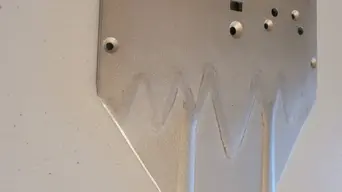

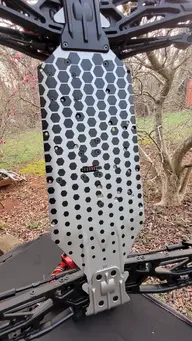

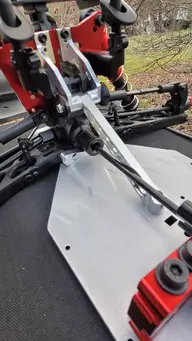

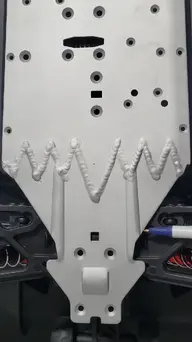

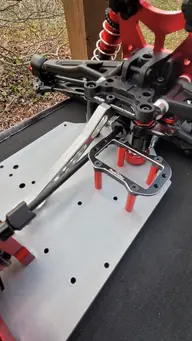

Started with a new Notorious V5 slider & a Kraton V5 chassis CNC lasered 25mm shorter & re-welded for a 352mm wheelbase. Spektrum 4074 2050kv motor & Spektrum 150a Stealth ESC. Power HD 40kg servo. Tekno 14t pinion. All aluminum hinge pin holders. Aluminum chassis braces. Tower to tower brace custom cut down to fit. Arrma EXB Kraton shock towers. Aluminum bellcrank & EXB ackerman. M2C rear tower braces. 3drc TPU wing mount. Aluminum center diff case. Corally Asuga 110mm rear dogbone to accommodate the shorter rear chassis length. 60/375/40 F/C/R diff fluids. Dual 40mm motor fans.
- RC Type
- Truck
- RC Brand
- Arrma
- RC Model
- Outcast
- RC Scale
- 1/7 Scale
Technical Specifications
- Power Source
- Electric
- Battery Type
- LiPo
- Motor Type
- Brushless
- Drive System
- 4WD (Four-Wheel Drive)
- Top Speed
- 40-59 mph
Additional Information
- Challenges Faced

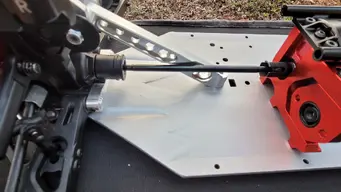

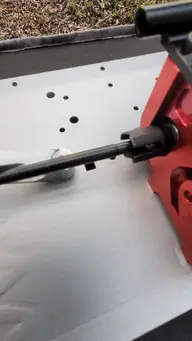

- The custom chassis. I designed the layout for the CNC laser. I made a DWG after I blueprinted the rear chassis. Finding the correct length of rear center dogbone.
