3D Printable 4x4 Wing Mount

jondilly1974

Speed running apprentice, 3D printing fool
Premium Member
Excellence Award
Build Thread Contributor
Messages
14,131
Reaction score
17,650
Location
Toledo, OH
Arrma RC's
Granite, Kraton 4s, Typhon 6s, Typhon 3s
Per your request @suchtragedy ....

Now I haven't had a chance to print and proof this yet, but the bulk of it should be good. I want to print this before I completely sign off on it. 💪🤘

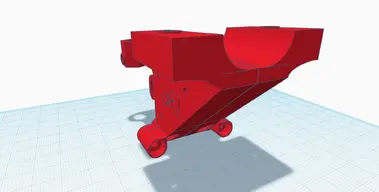

There is a left and right side. You will place the middle where they meet on the bed when printing. You will need a few minimal supports at the bottom.

Arrma 4x4 Wing Mount 1.0.png
Arrma 4x4 Wing Mount 1.0 (1).png


Attachments

jondilly1974

Speed running apprentice, 3D printing fool
Premium Member
Excellence Award
Build Thread Contributor
Messages
14,131
Reaction score
17,650
Location
Toledo, OH
Arrma RC's
Granite, Kraton 4s, Typhon 6s, Typhon 3s
Damn you knocked that out fast lol, Hoowwww?! I mean I'm not complaining but still 😂
TinkerCAD is pretty easy to use. I only had to make one side and then duplicate it and mirror it. Then add the recessed holes where it gets screwed together. Easy peasy.


suchtragedy

(┛ಠ_ಠ)┛彡ɯɹɐ loɹʇuoɔ ǝʞoɹq
Premium Member
Build Thread Contributor
Messages
1,001
Reaction score
1,436
Location
Wenatchee, WA
Arrma RC's
4x4-Mega, Granite, Infraction, Limitless, Outcast 4s, Typhon 3s, Voltage
TinkerCAD is pretty easy to use. I only had to make one side and then duplicate it and mirror it. Then add the recessed holes where it gets screwed together. Easy peasy.
Well if this even comes close to a good fit the first time I'm impressed. I always end up having to dial in measurements after 3-4 test prints because it's difficult to get it right, especially with objects that aren't flat.. at least for me lol


jondilly1974

Speed running apprentice, 3D printing fool
Premium Member
Excellence Award
Build Thread Contributor
Messages
14,131
Reaction score
17,650
Location
Toledo, OH
Arrma RC's
Granite, Kraton 4s, Typhon 6s, Typhon 3s
Well if this even comes close to a good fit the first time I'm impressed. I always end up having to dial in measurements after 3-4 test prints because it's difficult to get it right, especially with objects that aren't flat.. at least for me lol
There are some dumb lines that I couldn't get rid of in TC. When you join shapes it sometimes leaves a seam, even if the two objects were edge aligned perfectly. But I'm pretty sure they won't show on a print. 🤷‍♂️🤘


suchtragedy

(┛ಠ_ಠ)┛彡ɯɹɐ loɹʇuoɔ ǝʞoɹq
Premium Member
Build Thread Contributor
Messages
1,001
Reaction score
1,436
Location
Wenatchee, WA
Arrma RC's
4x4-Mega, Granite, Infraction, Limitless, Outcast 4s, Typhon 3s, Voltage
There are some dumb lines that I couldn't get rid of in TC. When you join shapes it sometimes leaves a seam, even if the two objects were edge aligned perfectly. But I'm pretty sure they won't show on a print. 🤷‍♂️🤘
Yeah I hate that too lol, sometimes I can clean them up in a meshlab afterwards but sometimes not. 🙄 It kinda hits my OCD nerve though, that and not being able to chamfer edges on curved surfaces, at least not a way I've found how to do yet 😵

Now maybe you could design 2.8 MT wheels next.... lmfao


jondilly1974

Speed running apprentice, 3D printing fool
Premium Member
Excellence Award
Build Thread Contributor
Messages
14,131
Reaction score
17,650
Location
Toledo, OH
Arrma RC's
Granite, Kraton 4s, Typhon 6s, Typhon 3s
Yeah I hate that too lol, sometimes I can clean them up in a meshlab afterwards but sometimes not. 🙄 It kinda hits my OCD nerve though, that and not being able to chamfer edges on curved surfaces, at least not a way I've found how to do yet 😵

Now maybe you could design 2.8 MT wheels next.... lmfao
Oh boy, here we go. I have wanted to do offset wheels for a while now. I wanted to take the 3.8 Backflip wheels and turn the hex around 180 degrees to have a WELD style wheel. Maybe center the hex in the rim like below. I would love to do like what they did to the Kaiju wheels with white lettering inside the wheel.



suchtragedy

(┛ಠ_ಠ)┛彡ɯɹɐ loɹʇuoɔ ǝʞoɹq
Premium Member
Build Thread Contributor
Messages
1,001
Reaction score
1,436
Location
Wenatchee, WA
Arrma RC's
4x4-Mega, Granite, Infraction, Limitless, Outcast 4s, Typhon 3s, Voltage
FYI here's your wing installed. I edited it to add my own small little design touches. Overall came out well plus look at that flex! Flex for days and it goes back to shape after a few seconds. Definitely gonna to replace every stock mount with this one.

Thanks again for the design @jondilly1974


Attachments

suchtragedy

(┛ಠ_ಠ)┛彡ɯɹɐ loɹʇuoɔ ǝʞoɹq
Premium Member
Build Thread Contributor
Messages
1,001
Reaction score
1,436
Location
Wenatchee, WA
Arrma RC's
4x4-Mega, Granite, Infraction, Limitless, Outcast 4s, Typhon 3s, Voltage
Make it black now🤣 ehat would happen if you kade arms with the material?
It would drive like garbage and that is if it even was ridid enough to hold up the car's weight.

The wing weighs nothing so something like this is fine but for anything that needs to remotely hold its shape under load you need something that is super rigid but with a tiny bit of flex in it so it doesn't explode under load/impact. This stuff has way too much flex and not enough rigidness.

Messages
3,363
Reaction score
1,834
Location
Canada 🇨🇦 Montreal
Arrma RC's
Kraton 4s, Typhon 3s
It would drive like garbage and that is if it even was ridid enough to hold up the car's weight.

The wing weighs nothing so something like this is fine but for anything that needs to remotely hold its shape under load you need something that is super rigid but with a tiny bit of flex in it so it doesn't explode under load/impact. This stuff has way too much flex and not enough rigidness.
True


jondilly1974

Speed running apprentice, 3D printing fool
Premium Member
Excellence Award
Build Thread Contributor
Messages
14,131
Reaction score
17,650
Location
Toledo, OH
Arrma RC's
Granite, Kraton 4s, Typhon 6s, Typhon 3s
It would drive like garbage and that is if it even was ridid enough to hold up the car's weight.

The wing weighs nothing so something like this is fine but for anything that needs to remotely hold its shape under load you need something that is super rigid but with a tiny bit of flex in it so it doesn't explode under load/impact. This stuff has way too much flex and not enough rigidness.
Well you wouldn’t need shocks 🤷🏻‍♂️🤣🤣🤣


WTF MIKE

Well-Known Member
Messages
919
Reaction score
727
Arrma RC's
Where can I get that wing mount? It looks like it will hold up good job guys


jondilly1974

Speed running apprentice, 3D printing fool
Premium Member
Excellence Award
Build Thread Contributor
Messages
14,131
Reaction score
17,650
Location
Toledo, OH
Arrma RC's
Granite, Kraton 4s, Typhon 6s, Typhon 3s
@suchtragedy would you mind sharing your version so I can take a look and maybe adjust mine as well? Was it so you can bolt thru with nuts?


suchtragedy

(┛ಠ_ಠ)┛彡ɯɹɐ loɹʇuoɔ ǝʞoɹq
Premium Member
Build Thread Contributor
Messages
1,001
Reaction score
1,436
Location
Wenatchee, WA
Arrma RC's
4x4-Mega, Granite, Infraction, Limitless, Outcast 4s, Typhon 3s, Voltage
@suchtragedy would you mind sharing your version so I can take a look and maybe adjust mine as well? Was it so you can bolt thru with nuts?
Yeah I added a bunch of stuff and fixed a few things. Like some of those areas with seams actually had a micro gap (at least when Cura read it) so they were creating weird walls where there shouldn't be any when slicing. Also the bottom of the arms that connect to the body mount I added a angle cutout so they clear over the shock towers better, also added the holes for the 4s wheelie bar to mount from the Outcast 4s, made some of the walls on the bumper mounts bigger because they were super thin when printed, and added chamfer to some edges and corners, and a ton of other stuff mostly because once I got to editing it I couldn't stop messing with it.

See attached.


Attachments

jondilly1974

Speed running apprentice, 3D printing fool
Premium Member
Excellence Award
Build Thread Contributor
Messages
14,131
Reaction score
17,650
Location
Toledo, OH
Arrma RC's
Granite, Kraton 4s, Typhon 6s, Typhon 3s
So the stringing was pretty bad but otherwise these are solid AF!


Running another set at 12mm retraction per @Camaroboy383 advice. We will see how they turn out. Now I need some flashy colored filaments like @suchtragedy 🤣✌🏻


suchtragedy

(┛ಠ_ಠ)┛彡ɯɹɐ loɹʇuoɔ ǝʞoɹq
Premium Member
Build Thread Contributor
Messages
1,001
Reaction score
1,436
Location
Wenatchee, WA
Arrma RC's
4x4-Mega, Granite, Infraction, Limitless, Outcast 4s, Typhon 3s, Voltage
