Kraton spline gear

Cobluez

Well-Known Member
Messages
33
Reaction score
15
Arrma RC's
Anybody else have issues with the spline gears bein shot quickly? I maybe have 3 hrs of drivetime on my Kraton and both front and rear are history...


Cobluez

Well-Known Member
Messages
33
Reaction score
15
Arrma RC's


dpricenator

Well-Known Member
Excellence Award
Messages
1,180
Reaction score
1,088
Arrma RC's
WOW, that stinks. I know someone here will come up with a possible cause, and a possible fix for you.


bfs300

Active Member
Messages
4
Reaction score
0
Arrma RC's
I have been having trouble with my spiral gear. Changed the one in the front diff yesterday, took it out today now the rear one is shot.


Cobluez

Well-Known Member
Messages
33
Reaction score
15
Arrma RC's
I have been having trouble with my spiral gear. Changed the one in the front diff yesterday, took it out today now the rear one is shot.
Yep same here the front first then the rear within 24 hrs and I'd only had the truck2 s


travis328

Well-Known Member
Messages
198
Reaction score
152
Location
Winnipeg, Manitoba
Arrma RC's
  1. Senton 6s
Make sure you externally shim your diffs. Also check your diff housings for any cracks that might allow the diffs to move.
The other thing is about driving. If you enjoy jumping and back flipping, who doesn't, make sure you aren't landing the vehicle with the trigger pulled.


Trickelitrick

Well-Known Member
Messages
244
Reaction score
191
Location
Sweden
Arrma RC's
Theres a legendary shim called "mystery spacer" on the outside of the bearings on the diff ;)

Or you could very closely inspect the spurgear...the 43t spiral gear on front and rear diff... see if its grinded down on some teeth....

Last edited:

Cobluez

Well-Known Member
Messages
33
Reaction score
15
Arrma RC's
Thanks that makes more sense as far as where to shim it I'll try it!


slpcrf450x

Well-Known Member
Messages
177
Reaction score
87
Arrma RC's
How big were the shims you used? I could barely get one very thin washer in there.
You don't want it to be too tight because that's will cause excessive wear too. You just want to take up the excess slop with the shims. For example my front needed 3 and the rear only needed 1. The shims I use are Tekno TKR1222


Cobluez

Well-Known Member
Messages
33
Reaction score
15
Arrma RC's
You don't want it to be too tight because that's will cause excessive wear too. You just want to take up the excess slop with the shims. For example my front needed 3 and the rear only needed 1. The shims I use are Tekno TKR1222
Oh ok I believe I achieved getn rid of the slop but I think the gears are to far gone to know if it worked until I get the replacements Arrma Is sending thanks for the help.


MyZuC

Premium Member!
Premium Member
Messages
394
Reaction score
635
Arrma RC's
  1. Granite
  2. Infraction
  3. Limitless
  4. Kraton 8S
  5. Kraton 6s
  6. Kraton 4s
  7. Nero
  8. Outcast 6s
  9. Senton 6s
If you shim the ring gear properly, that problem will go away and stay away.

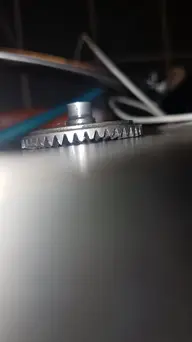

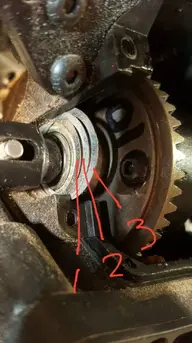

View attachment 8250
My diffs required 3 shims as well, but I put 2 on one side and 1 on the other. I was trying to balance the shims and not overload one side. I also didn't want to create a super tight mesh on the ring gear. Does anyone know which method is the correct way to shim?


travis328

Well-Known Member
Messages
198
Reaction score
152
Location
Winnipeg, Manitoba
Arrma RC's
  1. Senton 6s
I have 1 shim on each side of my diff. If I put 2 on the pinion side, the mesh is too tight, without the shim on the other side, the diff can still wander in the case a bit. My shims are 0.2mm thick each.


Trickelitrick

Well-Known Member
Messages
244
Reaction score
191
Location
Sweden
Arrma RC's
I had some serious issues with same gears ended up putting two 0.2mm and one 0.5mm total 0.9mm thickness both front and rear...only on the left side on front and rear diff to remove all play but still have it spinning with no binding. However i guess thats slightly different from car to car.
