My attempt at making a rear sway bar

ajdragon

Well-Known Member
Messages
690
Reaction score
317
Arrma RC's
Raider
Hi

Well this is my attempt at making a rear sway bar for my Raider XL. This is only part one and as I get more parts I will post more pics. I still need to get the flanged bearings for the mounts, a 2mm rod, and the swing arm mounting hard wear.

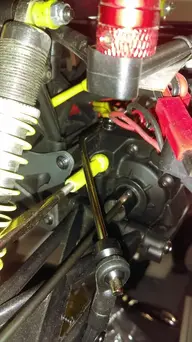

So here are the sway bar mounts I made.



Dustin Mustangs

Well-Known Member
Messages
609
Reaction score
427
Arrma RC's
Granite
I love these posts of yours, thanks for sharing all these ideas you come up with.

I imagine you could use a bushing there, or maybe even nothing at all. Would you agree? I've never messed with one of these on a model before but even full scale typically uses bushings in that application.


Lor Fury 6s

Well-Known Member
Messages
60
Reaction score
46
Location
Mid Florida
Arrma RC's
Fury
Nice work! I saw your post a little to late and I attached my sway bar on the diff that I got from an arrma kraton for my fury.now I start trying doing those brackets again great post!


Attachments

ajdragon

Well-Known Member
Messages
690
Reaction score
317
Arrma RC's
Raider
Hi

I like how you mounted yours, I never thought of doing it that way.

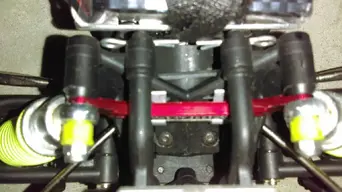

Well I got it done and it looks good but I need to find a softer metal rod for making the sway bar out of. I was planning on using 2.5mm rod for the sway bar but I could not find any so I went up to 1/8" rod instead, I also had to use bigger bearing to accommodate the new rod.

A word of advice too any one that want do it the way I did, be sure to get the bearings and lock callers on the rod before you make the second bend. I had mine all bent up and ready to go on when I realized I forgot to put the bearings and lock callers on.:(

There is one other advantage to having a sway bar on the back, and that is it put even pressure on both sides of you swing arm. Before you could see flexing in the swing arm when it went up and down but not any more.




For my next mod I am going to put a skid plate over the rear shock tower brace to keep it from bending when I land up side down.

Last edited:

Lor Fury 6s

Well-Known Member
Messages
60
Reaction score
46
Location
Mid Florida
Arrma RC's
Fury

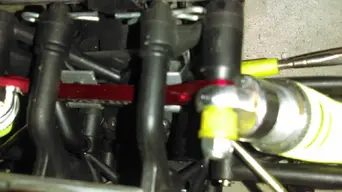

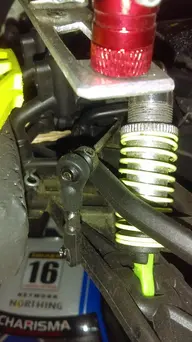

Nice! We're did you get the rods from home depot or hobbylobby? And did you get to mount the front swaybar? I mounted mines with a peace of thin sheet metal and cut a piece of fiber glass to secure it in between the front shock tower! 14574972029051351824867.jpg 1457497410928777618785.jpg 14574972029051351824867.jpg 1457497410928777618785.jpg 14574972029051351824867.jpg 1457497410928777618785.jpg 14574972029051351824867.jpg 1457497410928777618785.jpg


ajdragon

Well-Known Member
Messages
690
Reaction score
317
Arrma RC's
Raider
Hi

How do you have the front sway bar mounted to the a-arm's.


sparky_malone

Well-Known Member
Messages
55
Reaction score
15
Arrma RC's
Raider
What kind of dog bones or cvds or what ever they are you are using there mate? I likey the looky ooohhhh


sparky_malone

Well-Known Member
Messages
55
Reaction score
15
Arrma RC's
Raider
Typically how much would you charge to make this for some one. I really like your work. You can really tell you put your self into your projects..................

RESPECT ;)


Lor Fury 6s

Well-Known Member
Messages
60
Reaction score
46
Location
Mid Florida
Arrma RC's
Fury

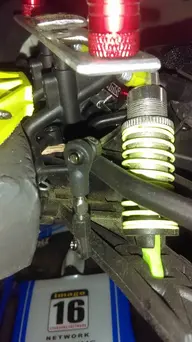

I know you don't like to put holes on your lower arms put there's plenty of space for a extra screw I drilled the lower arm with a 1/16 bit, Malone who 14575839381781351824867.jpg 1457584324826777618785.jpg 14575839381781351824867.jpg 1457584324826777618785.jpg are you talking to me or Aj it has to be you Aj. :) 14575839381781351824867.jpg


ajdragon

Well-Known Member
Messages
690
Reaction score
317
Arrma RC's
Raider
What kind of dog bones or cvds or what ever they are you are using there mate? I likey the looky ooohhhh
Hi

Here is the link for the CVD conversion I did.
https://arrmaforum.com/threads/associated-cva-or-cvd-conversion.722/

Most of the stuff I make is one off's, mainly because I have to make it all by hand. I have a power drill, and dermal, for doing most of my mill work. I wish I had the equipment for making these upgrades.

"Lor Fury 6s" I like how you have your sway bars set up. Also try the more options button when you post so that you can use the preview option so you don't cut your sentences up into motiple parts.;)

Last edited:

Lor Fury 6s

Well-Known Member
Messages
60
Reaction score
46
Location
Mid Florida
Arrma RC's
Fury
Yeah I know I did that by mistake! And thanks I broke my head for about no lie three hours o so!


LunchBox

Well-Known Member
Messages
476
Reaction score
199
Location
New Orleans L.a.
Arrma RC's
Granite

LunchBox

Well-Known Member
Messages
476
Reaction score
199
Location
New Orleans L.a.
Arrma RC's
Granite
Man I want to make one of these but not sure if I can! I notice alot of movement in the rear of my granite mega not so much on the blx but if I put it on one gotta make 2


Lor Fury 6s

Well-Known Member
Messages
60
Reaction score
46
Location
Mid Florida
Arrma RC's
Fury
Man I want to make one of these but not sure if I can! I notice alot of movement in the rear of my granite mega not so much on the blx but if I put it on one gotta make 2
What up! LunchBox Just order the set of swaybar for the kraton and there's two different ways of installing them it shouldn't be so hard! Plus you will gain more traction.

Last edited:

Lor Fury 6s

Well-Known Member
Messages
60
Reaction score
46
Location
Mid Florida
Arrma RC's
Fury
Awesome will try that... I also ordered so of those duratrax shock to try out
Kool! Do you have any play in the rear carier hubs or the arm's you can tighten them bye putting washers in between,it could be wear and tear,yeah I just changed my silver shocks for red ones they combine better with my them e yellow and red in the "truck" which I turned to strictly onroad,


LunchBox

Well-Known Member
Messages
476
Reaction score
199
Location
New Orleans L.a.
Arrma RC's
Granite
Kool! Do you have any play in the rear carier hubs or the arm's you can tighten them bye putting washers in between,it could be wear and tear,yeah I just changed my silver shocks for red ones they combine better with my them e yellow and red in the "truck" which I turned to strictly onroad,
Yeh I like them they are nice I have atomic hot racing shock on my BLX and hey are awesome.... And I have a little play on my mega with the velineon motor but the BLX is solid!
