Kraton Swapping out the pinion on V2 Kraton disaster.

CL-Audio

Well-Known Member
Messages
343
Reaction score
161
Location
Denver Metro Area, Colorado, USA
Arrma RC's
  1. Kraton 6s
  2. Outcast 6s
OMG! Who knew this would be so time consuming and frustrating! I had no problem unscrewing the grub screw but pulling the pinion off was ridiculous. After over an hour i was finally able to pry it off with lots of brute force. Scratched up my motor mount in the process, grrrr! You could see all the caked on red loctite. It was like cement. ARRMA please stop with the red loctite.


Now I cannot get the motor mount screws loose to allow gear mesh adjustment. They will not budge. I have tried brute force and heat to try and loosen them, nothing is working. This should be a 15 minute process. Kraton has been on blocks for 2 days now just trying to change the pinion, not cool. Any suggestions guys???


Ole Fart51

Well-Known Member
Messages
414
Reaction score
334
Location
Louisiana
Arrma RC's
  1. Nero
  2. Talion
OMG! Who knew this would be so time consuming and frustrating! I had no problem unscrewing the grub screw but pulling the pinion off was ridiculous. After over an hour i was finally able to pry it off with lots of brute force. Scratched up my motor mount in the process, grrrr! You could see all the caked on red loctite. It was like cement. ARRMA please stop with the red loctite.

View attachment 3243

Now I cannot get the motor mount screws loose to allow gear mesh adjustment. They will not budge. I have tried brute force and heat to try and loosen them, nothing is working. This should be a 15 minute process. Kraton has been on blocks for 2 days now just trying to change the pinion, not cool. Any suggestions guys???
OMG! Who knew this would be so time consuming and frustrating! I had no problem unscrewing the grub screw but pulling the pinion off was ridiculous. After over an hour i was finally able to pry it off with lots of brute force. Scratched up my motor mount in the process, grrrr! You could see all the caked on red loctite. It was like cement. ARRMA please stop with the red loctite.

View attachment 3243

Now I cannot get the motor mount screws loose to allow gear mesh adjustment. They will not budge. I have tried brute force and heat to try and loosen them, nothing is working. This should be a 15 minute process. Kraton has been on blocks for 2 days now just trying to change the pinion, not cool. Any suggestions guys???
I had same problem. Ended up using my soldering iron. Put tip on the screw for about a minute. Then loosen. Worked for me.


Kauaiguy

Well-Known Member
Messages
455
Reaction score
164
Location
Kauai
Arrma RC's
Damn, I did that and nothing. Maybe I need to turn the soldering iron up all the way and hold it on the screw longer......
You need the pinion to get up over 500f,so it takes a few mintues on the highest setting of your soldering iron.All my screws came right off that way.


Kauaiguy

Well-Known Member
Messages
455
Reaction score
164
Location
Kauai
Arrma RC's
For the motor mount screws,also stick the end of the soldering iron into the hex head,might take a little longer on those.You want to use a good locktite on reassembly because bad stuff happens if either the pinion or mount bolts lossen under load.


CL-Audio

Well-Known Member
Messages
343
Reaction score
161
Location
Denver Metro Area, Colorado, USA
Arrma RC's
  1. Kraton 6s
  2. Outcast 6s
For the motor mount screws,also stick the end of the soldering iron into the hex head,might take a little longer on those.You want to use a good locktite on reassembly because bad stuff happens if either the pinion or mount bolts lossen under load.
Thanks. I hesitate to use to much loctite. I'm pretty sure the red loctite is why these things are borderline impossible to remove. I'm considering buying a mini butane torch.


The German

Well-Known Member
Messages
114
Reaction score
35
Location
Germany
Arrma RC's
But it is worth it.

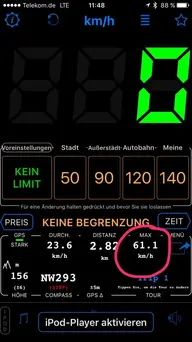

First test on the street - app. 90% throttle:


Still a bit afraid, the street gets so small with this speed.
And I am using my iPhone taped on the body - very risky.


Last edited:

Jerry-rigged

Have you seen my LVC?
Premium Member
ArrmaForum Fan
Excellence Award
Build Thread Contributor
Messages
4,741
Reaction score
4,463
Location
Texas, Baby!
Arrma RC's
  1. 4x4-Mega
  2. Kraton 6s
  3. Outcast 6s
  4. Typhon 6s
I used a soldering iron, set to 788deg, for about 2 minutes on those screws. Pinion grub too. Use blue locktite going back together. Red is for stuff that you assume will never be removed.... LOL


CL-Audio

Well-Known Member
Messages
343
Reaction score
161
Location
Denver Metro Area, Colorado, USA
Arrma RC's
  1. Kraton 6s
  2. Outcast 6s
I used a soldering iron, set to 788deg, for about 2 minutes on those screws. Pinion grub too. Use blue locktite going back together. Red is for stuff that you assume will never be removed.... LOL
Thanks. Why in the world would Arrma assume a hobby grade rc truck would never be taken apart ? My motor is STILL on my workbench for a simple pinion swap. Ridiculous , lol.


Kauaiguy

Well-Known Member
Messages
455
Reaction score
164
Location
Kauai
Arrma RC's
Yes, until now only 4s.
I use red locktite on my pinion and motor mount screws and installed the Rcscrewz ss kit,so i have removed every fastner.Only had to use heat on the pinion and motor mount screws but i would rather use heat then have them slip under load.


c10vortec

Well-Known Member
Messages
9
Reaction score
5
Arrma RC's
Glad to know I wasn't the only one with factory loctite issues, I considered starting a similar thread when it happened. My issue was with the motor mount bolts in the chassis. The picture says enough, but there was powder build up underneath the heads of the countersunk screws...it looked like they filled the hole with loctite then put the screws in. I was able to remove 2 of the 3 at the cost of breaking the ratcheting mechanism of my driver, but I stripped the middle one even after heating it. so I had to drill it out then slot it with a die grinder and remove with a screw driver. It still wasn't easy, a 30 min diff service took about 2 hours... My soldering Iron didn't even touch the loctite and it's a decent iron, it was just too much aluminum for heat to build up. I bought the pencil torch kit at Lowe's for about $15 so I didn't have to aim a full sized butane torch at my rc. It did the trick after some thorough heating..



Swerny

Well-Known Member
Messages
197
Reaction score
70
Location
Toronto, Ontario, Canada
Arrma RC's
Glad to know I wasn't the only one with factory loctite issues, I considered starting a similar thread when it happened. My issue was with the motor mount bolts in the chassis. The picture says enough, but there was powder build up underneath the heads of the countersunk screws...it looked like they filled the hole with loctite then put the screws in. I was able to remove 2 of the 3 at the cost of breaking the ratcheting mechanism of my driver, but I stripped the middle one even after heating it. so I had to drill it out then slot it with a die grinder and remove with a screw driver. It still wasn't easy, a 30 min diff service took about 2 hours....

I had the same issue with my new Kraton.

stripped one of the motor mount bolts. Had to drill it out now i can't get the broken stub out of the mount itself.

New mount is $30 too.


CL-Audio

Well-Known Member
Messages
343
Reaction score
161
Location
Denver Metro Area, Colorado, USA
Arrma RC's
  1. Kraton 6s
  2. Outcast 6s
I was finally able to remove the motor mount screws . I had to hold my soldering iron on the screw for about 10 minutes . Now to do some center diff maintenance and decide on the oil weight .


Kauaiguy

Well-Known Member
Messages
455
Reaction score
164
Location
Kauai
Arrma RC's
I had the same issue with my new Kraton.

stripped one of the motor mount bolts. Had to drill it out now i can't get the broken stub out of the mount itself.

New mount is $30 too.
Go on to the Ebay site and type in Arrma Kraton,there you will find the motor mount for around $7/8 bucks.Almost all parts are available much cheaper!!
