Vendetta Running the vendetta on 4S

basher27

Well-Known Member
Messages
398
Reaction score
135
What is everyone’s opinion on running the stock motor with a 4S battery occasionally? I realize that it will reduce the life of the motor just curious as to how much? On YouTube I’ve been watching several people run the stock motor on 6S and it seems to be working time and time again. Thank you


basher27

Well-Known Member
Messages
398
Reaction score
135
That is true, however I typically like to go with the spectrum brand which is not very cheap unfortunately. I am also more just curious on longevity with running a 4S battery?


Engineer

🦄💩
Lifetime Premium!
Premium Member
Build Thread Contributor
Messages
4,325
Reaction score
8,122
Location
Ohio
Arrma RC's
  1. Voltage
It's a 3900 kV motor. Spektrum doesn't publish any max RPM specs, but unloaded @ 3S, that's 49K RPM and @ 4S that's 65K RPM. So just be careful if you decide to run it on a 4S system (you'll have to upgrade the stock Firma 100 ESC too as it is only 2S-3S).


1999fd

Well-Known Member
Build Thread Contributor
Messages
451
Reaction score
293
Location
Greece
Arrma RC's
  1. Senton 3s
What is everyone’s opinion on running the stock motor with a 4S battery occasionally? I realize that it will reduce the life of the motor just curious as to how much? On YouTube I’ve been watching several people run the stock motor on 6S and it seems to be working time and time again. Thank you
I've run a Senton motor on 4s pretty hot to run. Upgraded the fan and it's good now. Would tip you just to get a 4s motor from jennyrc not really worth overvolting.


basher27

Well-Known Member
Messages
398
Reaction score
135
It's a 3900 kV motor. Spektrum doesn't publish any max RPM specs, but unloaded @ 3S, that's 49K RPM and @ 4S that's 65K RPM. So just be careful if you decide to run it on a 4S system (you'll have to upgrade the stock Firma 100 ESC too as it is only 2S-3S).
I ordered the 120 amp ESC. As I stated earlier I seen several different people running 6S which would be a ton more power than the 4S


dure16

Premium Member!
Premium Member
Build Thread Contributor
Messages
3,162
Reaction score
3,642
Arrma RC's
  1. Fireteam
  2. Granite
  3. Infraction
  4. Kraton EXB
  5. Typhon 3s
  6. Typhon TLR
I've run a Senton motor on 4s pretty hot to run. Upgraded the fan and it's good now. Would tip you just to get a 4s motor from jennyrc not really worth overvolting.
The vendetta motor will run even hotter than the senton motor.


basher27

Well-Known Member
Messages
398
Reaction score
135
I've run a Senton motor on 4s pretty hot to run. Upgraded the fan and it's good now. Would tip you just to get a 4s motor from jennyrc not really worth overvolting.
My concern is getting a 4S motor with such a low KV rating I will be getting a lower TopSpeed then running a 3S battery with the 26 tooth pinion. I don’t know how much larger of a pinion gear I can put in that motor plate. From what I remember there is very little room with installing the 26 tooth pinion.


K-BASH

Well-Known Member
Build Thread Contributor
Messages
5,959
Reaction score
9,810
Location
ST.LOUIS
Arrma RC's
  1. BigRock 4x4
  2. Mojave
  3. Notorious
  4. Senton 6s
  5. Senton 3s
  6. Typhon 6s
My concern is getting a 4S motor with such a low KV rating I will be getting a lower TopSpeed then running a 3S battery with the 26 tooth pinion. I don’t know how much larger of a pinion gear I can put in that motor plate. From what I remember there is very little room with installing the 26 tooth pinion.
Ya really should get away from the spectrum stuff..for not much more you can get tp an castle...both WAY BETTER for not much more...mm2 120$ an a tp3650-3080kv 109$ an ya got a 100mph 3s setup...130/4s an 150/5s capable system for not much more than spectrum stuff.far as gearing..the HR slipper eliminater with mod1 gears an ya can use 34t,36t spurs an run crazy #'s on 3,4s..
My concern is getting a 4S motor with such a low KV rating I will be getting a lower TopSpeed then running a 3S battery with the 26 tooth pinion. I don’t know how much larger of a pinion gear I can put in that motor plate. From what I remember there is very little room with installing the 26 tooth pinion.

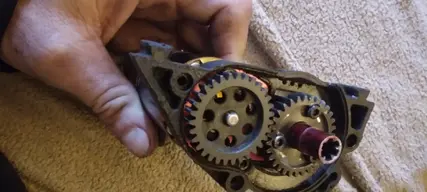

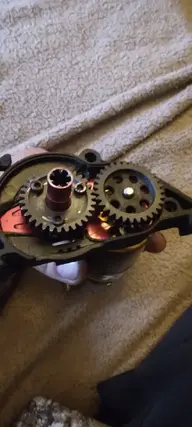

Go smaller with spur then ya can go bigger on pinion..I could fit 32 pinion an 31t spur!!!!!here's 31/31.about the tallest gearing possible.
My detta is currently mmx8s-tp3650-3080kv
27/31 an ran 112mph on 4s in neighborhood in 1200ft..I got it on vid on YT..currently the world's
fastest 2,3,an 4s vendetta


Attachments

  • 20221105_122320.jpg
    117.5 KB · Views: 17
  • 20221105_122343.jpg
    129.1 KB · Views: 18
  • 16686256837187699085774717172563.jpg
    176.2 KB · Views: 13
Last edited:

Tex Koder

2D , 3D Not a problem. I'll take that Challenge.
Lifetime Premium!
Premium Member
ArrmaForum Fan
Build Thread Contributor
Messages
3,812
Reaction score
8,528
Location
Dallas, TX (USA)
Arrma RC's
  1. Granite
  2. Infraction
  3. Kraton 6s
  4. Mojave
  5. Senton 3s
  6. Vendetta
Ya really should get away from the spectrum stuff..for not much more you can get tp an castle...both WAY BETTER for not much more...mm2 120$ an a tp3650-3080kv 109$ an ya got a 100mph 3s setup...130/4s an 150/5s capable system for not much more than spectrum stuff.far as gearing..the HR slipper eliminater with mod1 gears an ya can use 34t,36t spurs an run crazy #'s on 3,4s..

Go smaller with spur then ya can go bigger on pinion..I could fit 32 pinion an 31t spur!!!!!here's 31/31.about the tallest gearing possible.
My detta is currently mmx8s-tp3650-3080kv
27/31 an ran 112mph on 4s in neighborhood in 1200ft..I got it on vid on YT..currently the world's
fastest 2,3,an 4s vendetta

dear lord.. That's a BIG pinion!
Is that custom?


Hector_Fisher

Well-Known Member
Messages
1,414
Reaction score
2,570
Location
WA
Arrma RC's
  1. BigRock 4x4
  2. Granite
  3. Kraton EXB
What is everyone’s opinion on running the stock motor with a 4S battery occasionally? I realize that it will reduce the life of the motor just curious as to how much? On YouTube I’ve been watching several people run the stock motor on 6S and it seems to be working time and time again. Thank you
You can do it. Sure thing. It will not last long though with lots of full throttle use. Have used 4000kv motors on 3 and 3200kv motors on 4s for quite a while (around 50k rpm) and they hold up, just need bearings changed more frequently.

If you are sensitive enough to ensure that the motor stays below 50k RPM (and could do the math in your head), you could even run 8s on the motor if you wanted to, no problem.

I'm guessing that you'll spend at least some amount of time at full throttle and top speed (or at least trying to get there), so I'd suggest a lower KV motor for longevity.
