New reason to upgrade axles and out drives

Discussion in 'Chassis & Drivetrain' started by ajdragon, Nov 16, 2015.

Tags:
  1. ajdragon

    ajdragon Well-Known Member

    Joined:
    Oct 14, 2015
    Messages:
    523
    Likes Received:
    250
    Arrma RC's:
    Raider
    Hi

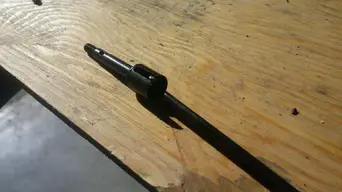

    While comparing my new CVD to the stock axles and dog bones, I noticed something strange about the axles and out drives. It would seem that the Arrma axles and out drives have a funnel shaped hole to them "Top Image" , where as most other RC company's use cylinder shaped holes "Bottom Image". This funnel shaped hole makes the axles and out drives in that spot much weaker, which explains why so many people are destroying there axles so quickly. I thought I would give people a heads up about this design flaw.


    Lor Fury 6s and Swampie like this.
  2. mrbelloso

    mrbelloso Moderator
    Staff Member Supporting Member

    Joined:
    May 21, 2015
    Messages:
    1,007
    Likes Received:
    393
    Location:
    Brisbane, Australia
    Arrma RC's:
    Fury
    Thanks for the info

  3. ajdragon

    ajdragon Well-Known Member

    Joined:
    Oct 14, 2015
    Messages:
    523
    Likes Received:
    250
    Arrma RC's:
    Raider
    Hi

    Just so people know, this funnel shaped hole is going to make finding CVD more difficult. The Arrma dog bones have larger balls on the ends in order to fit the funnel shaped holes better.

  4. Darren Wes

    Darren Wes Well-Known Member

    Joined:
    May 22, 2015
    Messages:
    306
    Likes Received:
    155
    Location:
    St. Louis
    Arrma RC's:
    Granite
    If somehow the a.e. diff and outdrives would fit would that make the rrst of that build sit better and work properly

  5. ajdragon

    ajdragon Well-Known Member

    Joined:
    Oct 14, 2015
    Messages:
    523
    Likes Received:
    250
    Arrma RC's:
    Raider
    Hi

    Yes, and also the diff gear for the HPI Blitz/E-Firestorm 10T will also fit. If you go the HPI Diff rout, I would recommend getting it from dollarhobbyz.com for less the $40.

    #5 ajdragon, Nov 19, 2015
    Last edited: Nov 19, 2015
  6. Swampie

    Swampie Well-Known Member

    Joined:
    Apr 3, 2016
    Messages:
    55
    Likes Received:
    13
    Arrma RC's:
    Raider
    1St thing i noticed was this flawed design when the pins on the dogbone seem to leave their perspective groove and actually go into and inside this groove, forcing the outdrive outward from the inside.

    Basically destroying itself! Arrma needs a retake on a few things here.

    The outdrive design
    The Hingepin at rear & perhaps how these lower a-arms mount to the chassis. This also suffers from material needed in areas lacking. Knuckles and uprights and lets also mention the fron control arm assembly. I can only use 10th scale shocks on a claimed 8th scale buggy...this also applies to the rear shocks.

    This covers just a few ontop my mind at 5:42am lol

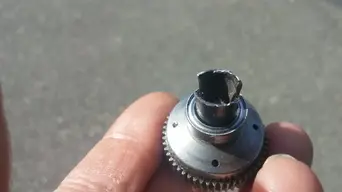

    Image i left shows how the pin goes inside the cup (outdrive). This forces the dogbone pin to push the outdrive apart. Lmao!
    Ive been into rc for 25 some years and this is a sub hobby rc in many regards. Tires threw me off 1st when i unboxed it aswel as those sweeeet cheap shocks and springs from toys r us.

    And 1 last thing...
    10th scale motor
    10th scale trans and its internals
    10th scale parts. Period.

    8th scale XL???? Haha

    Sorry...this is a question??

    Can i just get away with using the HPI Blitz Flux outdrive as a direct replacement or do i need other things in a conversion of outdrives??

    Also.. What cross-pin can i use so i can go with a 4-spyder setup?

    Thanks.
    Cuz as of now....i am out a Raider XL


    Attached Files:

  7. ajdragon

    ajdragon Well-Known Member

    Joined:
    Oct 14, 2015
    Messages:
    523
    Likes Received:
    250
    Arrma RC's:
    Raider
    Hi

    The HPI Blitz Flux outdrives have a hexagon shaped shaft and a e-clip to hold the bevel gear onto the shaft. You would need the HPI Blitz Flux diff gear assembly.

  8. Swampie

    Swampie Well-Known Member

    Joined:
    Apr 3, 2016
    Messages:
    55
    Likes Received:
    13
    Arrma RC's:
    Raider
    Yea... Just getting all HPI part#s involved for "just" the 52t diff and all its internals. Not including idler nor top gear. I seen somewhere whereas it drops in using your existing Arrma idler/top gears?

    I also have a set of HPI dogbones which nearly match my Arrma length @ 6x86mm.

    This will save me money and time if so.

    Yea...just getting part#s right now. I will also get the 6x86mm dogbones which saves me money and time messing with a Cvd conversion. All i need now is a part# for a set of crosspins to goto a 4-spyder in this hpi case??

  9. ajdragon

    ajdragon Well-Known Member

    Joined:
    Oct 14, 2015
    Messages:
    523
    Likes Received:
    250
    Arrma RC's:
    Raider
    Hi

    Check this out for the cross pins, it's the only exiting solution that I have found.

  10. Swampie

    Swampie Well-Known Member

    Joined:
    Apr 3, 2016
    Messages:
    55
    Likes Received:
    13
    Arrma RC's:
    Raider
    Check what out?
    You have part#s for a set of crosspins?

  11. ajdragon

    ajdragon Well-Known Member

    Joined:
    Oct 14, 2015
    Messages:
    523
    Likes Received:
    250
    Arrma RC's:
    Raider
  12. Swampie

    Swampie Well-Known Member

    Joined:
    Apr 3, 2016
    Messages:
    55
    Likes Received:
    13
    Arrma RC's:
    Raider
    Thanks!

    This is my list to get back on the road.
    Mostly HPI which i trust as I've had many models of them. This will include a 6x86mm dogbone and also the 4-spyder setup...

    HPi
    86943 diffcase 52t
    86872 diffcase gasket silicone
    103400 x2 bevelgears (spyders)
    104726 o-rings silicone
    Z242 e-clips
    Z892 washers/spacers
    B030 bearings 10x15x4mm
    86886 dogbone set 6x86mm
    86871 outdrive cups
    Z449 diff case screws

    XRAY
    355080 crosspins/slotted

    * I'll also heat treat the outdrives & use x5 spacers on the diffcase (each side) to center it in the t-case.

    Thought id chime in and update this...

    All my parts have been ordered but a few are still enroute to the hobby shop. Those should be here tomorrow then shipped to me.

    Arrma finally got back to me via an email i sent days ago. I basically told them there was no point to use their failed and flawed unit and that i had already ordered new parts from the HPI Blitz Flux to remedy Arrmas screw up. The guy insisted on sending me replacement parts so i guess ill have a cool paperweight now. Lol

    WoodiE likes this.
  13. WoodiE

    WoodiE Kind of good admin
    Staff Member

    Joined:
    May 14, 2015
    Messages:
    2,459
    Likes Received:
    1,631
    Location:
    Lexington, KY
    Looking forward to hearing how this works out for you.

  14. mrbelloso

    mrbelloso Moderator
    Staff Member Supporting Member

    Joined:
    May 21, 2015
    Messages:
    1,007
    Likes Received:
    393
    Location:
    Brisbane, Australia
    Arrma RC's:
    Fury
    Could we have some photos of the diff assembly.

    Thanks

    WoodiE likes this.
  15. Swampie

    Swampie Well-Known Member

    Joined:
    Apr 3, 2016
    Messages:
    55
    Likes Received:
    13
    Arrma RC's:
    Raider
    Post #8

  16. mrbelloso

    mrbelloso Moderator
    Staff Member Supporting Member

    Joined:
    May 21, 2015
    Messages:
    1,007
    Likes Received:
    393
    Location:
    Brisbane, Australia
    Arrma RC's:
    Fury
    Sorry, I was asking for photos of the HPI

  17. Swampie

    Swampie Well-Known Member

    Joined:
    Apr 3, 2016
    Messages:
    55
    Likes Received:
    13
    Arrma RC's:
    Raider
    Ahh... Parts are all ordered from a hobby shop outside my town. My LHS are retards so i gave up ordering from them i still have crap i ordered a month or two ago. Lol

    As for the HPI diff... The remaining few parts the shop had to source out should be there by this tuesday. From there it gets sent to me so...hoping by Friday this week. Ill post whrn i get it all in my hands.

    mrbelloso likes this.
  18. mrbelloso

    mrbelloso Moderator
    Staff Member Supporting Member

    Joined:
    May 21, 2015
    Messages:
    1,007
    Likes Received:
    393
    Location:
    Brisbane, Australia
    Arrma RC's:
    Fury
    Thanks

  19. ajdragon

    ajdragon Well-Known Member

    Joined:
    Oct 14, 2015
    Messages:
    523
    Likes Received:
    250
    Arrma RC's:
    Raider
    Hi

    Hay Swampie it didn't dawn on me until just now, what it was you were going to do. The HPI Blitz diff can not be upgraded the same way as the Arrma diffs can. There is not enough room to put the cross pins and extra gears in the diff case. As you can see in the picture there is no room for those extra parts. Also the Xray cross pins are for upgrading the Arrma diff. Sorry about not n



  20. Swampie

    Swampie Well-Known Member

    Joined:
    Apr 3, 2016
    Messages:
    55
    Likes Received:
    13
    Arrma RC's:
    Raider
    Ok...that changes a touch... Maybe ill see what i can do now that ill have multiple sets of arrma diff parts aswel as the new HPI diff parts (which my creditcard just got the charge...meaning all the HPI bits arrived and now can be shipped) hopefully by Friday this week i can see about exactly what i am able to achieve. Eitherway...it wont be a grenade diff from Arrma. Lol

    Question:
    Does anyone know or have the specs for the Raider XL outdrive shafts?
    Id need the spec for where the hole goes through for the drive-pin aswel?

    Thanks

    Small update:
    Still crossing my fingers my parts arrive tomorrow but i added a set of 1st Gen Arrma shafts to this just for experimental purposes. Somethin tells me this is another fail anyhow but... Lmao

    As for these outdrives it seems the design is closest to Kyosho on how these are done? Other then the HPI Blitz Flux diffs but those are a 2-spyder setup. Hmmm

    How frustrating this Raider XL has become!
    Never again will i purchase another vehicle from Arrma. This is what happened many years ago when i tried into Traxxas shit. Lol

    Just hate the design,the materials used & the namesake in the end.

    Leaves a bad taste at the end of the day!
    Because of this fail ive had to invest another 200.00 hoping it will resolve this???
